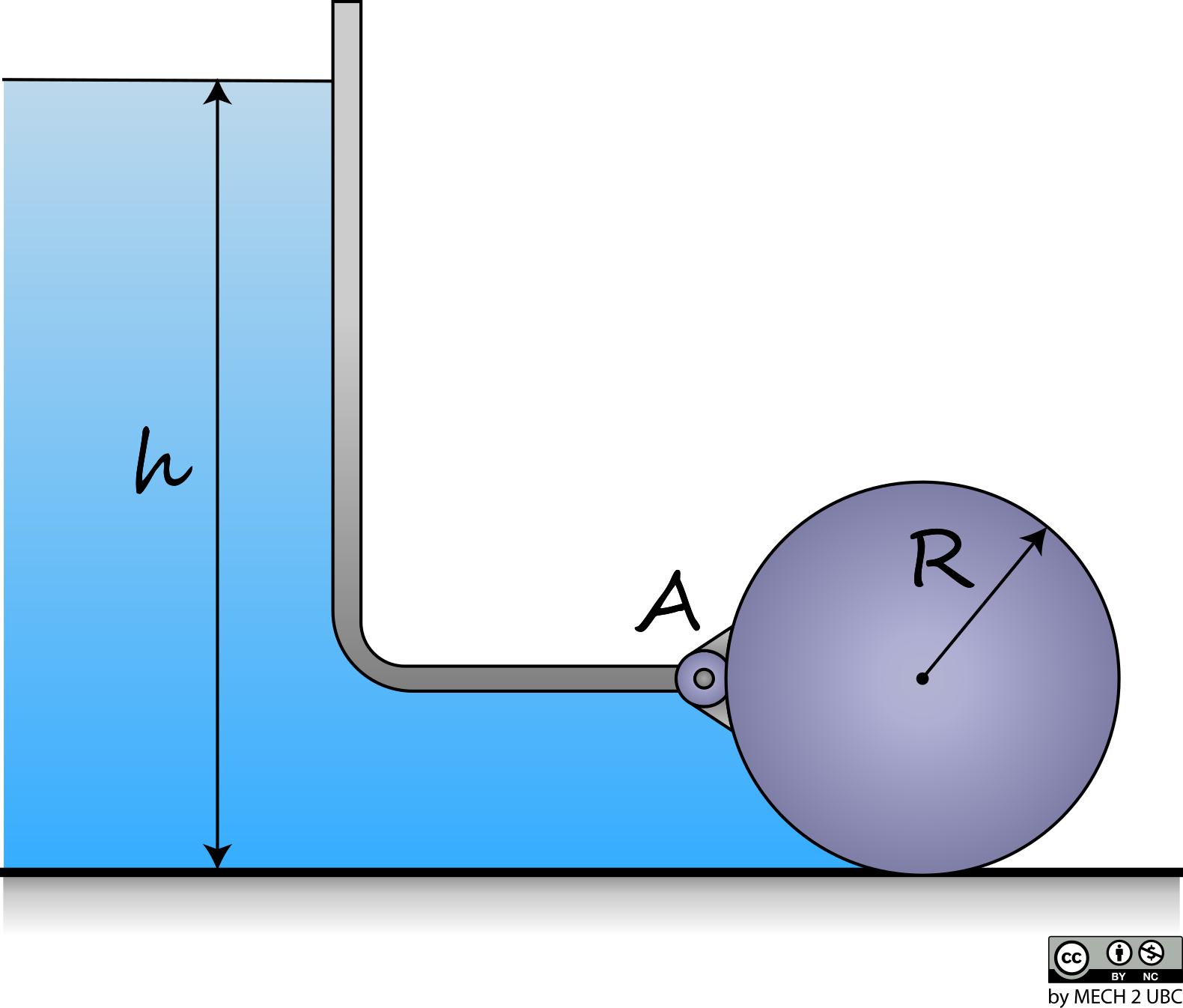

A long, solid cylinder of radius hinged at point is used as an automatic gate, as shown in the figure below.
When the water level reaches , the cylindrical gate opens by turning about the hinge at point . Determine:
- The hydrostatic force acting on the cylinder and its line of action when the gate opens
- The weight of the cylinder per length of the cylinder.
You can earn partial credit on this problem.
